》 设 备 功 能 EQUIPMENT FUNCTIONS
圆柱电池模组PACK自动生产线，包含电芯上料、扫码，电芯测高，电芯分选，自动极柱清洗，电芯配 对、电芯自动入支架、极柱寻址、激光焊接A面、自动 翻转、激光焊接B面、PACK 组装、模组下线等，完成从圆柱电芯到模组的自动化装配。

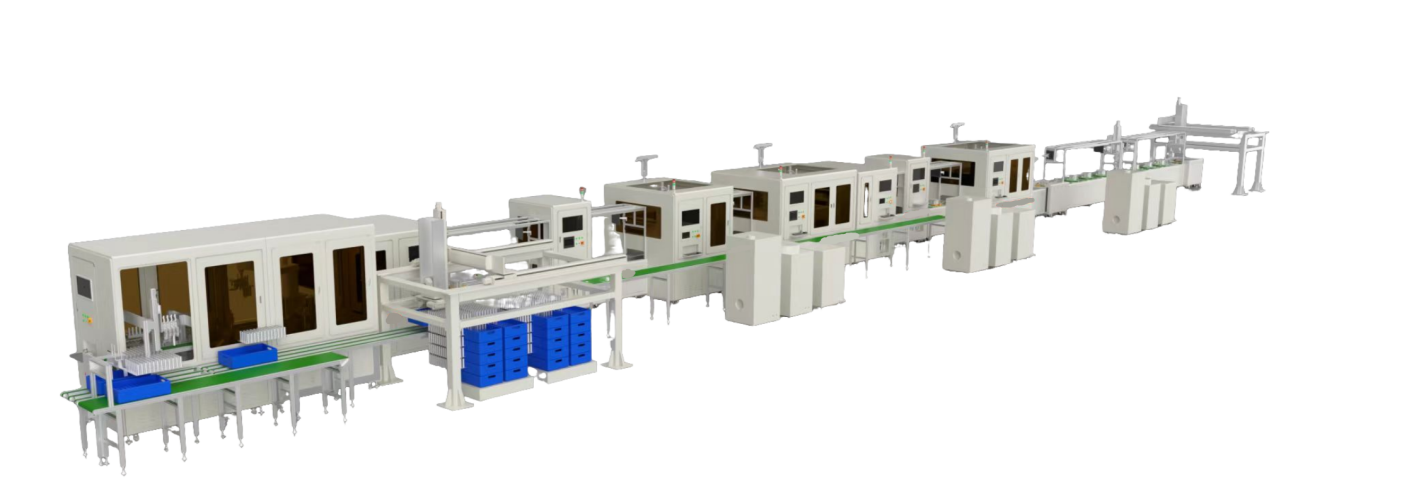

The cylindrical battery module PACK automatic production line includes cell loading,scanning,cell height measurement,cell sorting,automatic pole cleaning,cell pairing,cell automatic insertion into the bracket,pole addressing,laser welding of A-side,automatic flipping,laser welding of B-side,PACK assembly,module offline,etc.completing the automated assembly from cylindrical cells to modules.
》技 术 亮 点 TECHNICAL HIGHLIGHTS
1.设备智能化程度高，调试简单，易学易懂
2.生产参数数据可上传MES 系统进行生产管理
3 .产线柔性化设计，可兼容不同规格电芯
4.振镜焊接与电阻焊接可选，兼容不同材质电芯
5.整线效率可达30～40PPM。
1.The device has a high degree of intelligence,simple debugging,and is easy to learn and understand
2.Production parameter data can be uploaded to the MESsystem for production management
3.Flexible design of production line,compatible with
different specifications of battery cells
4.Mirror welding and resistance welding are optional,compatible with different materials of battery cells
5.The overall efficiency of the line can reach 30~40PPM.
